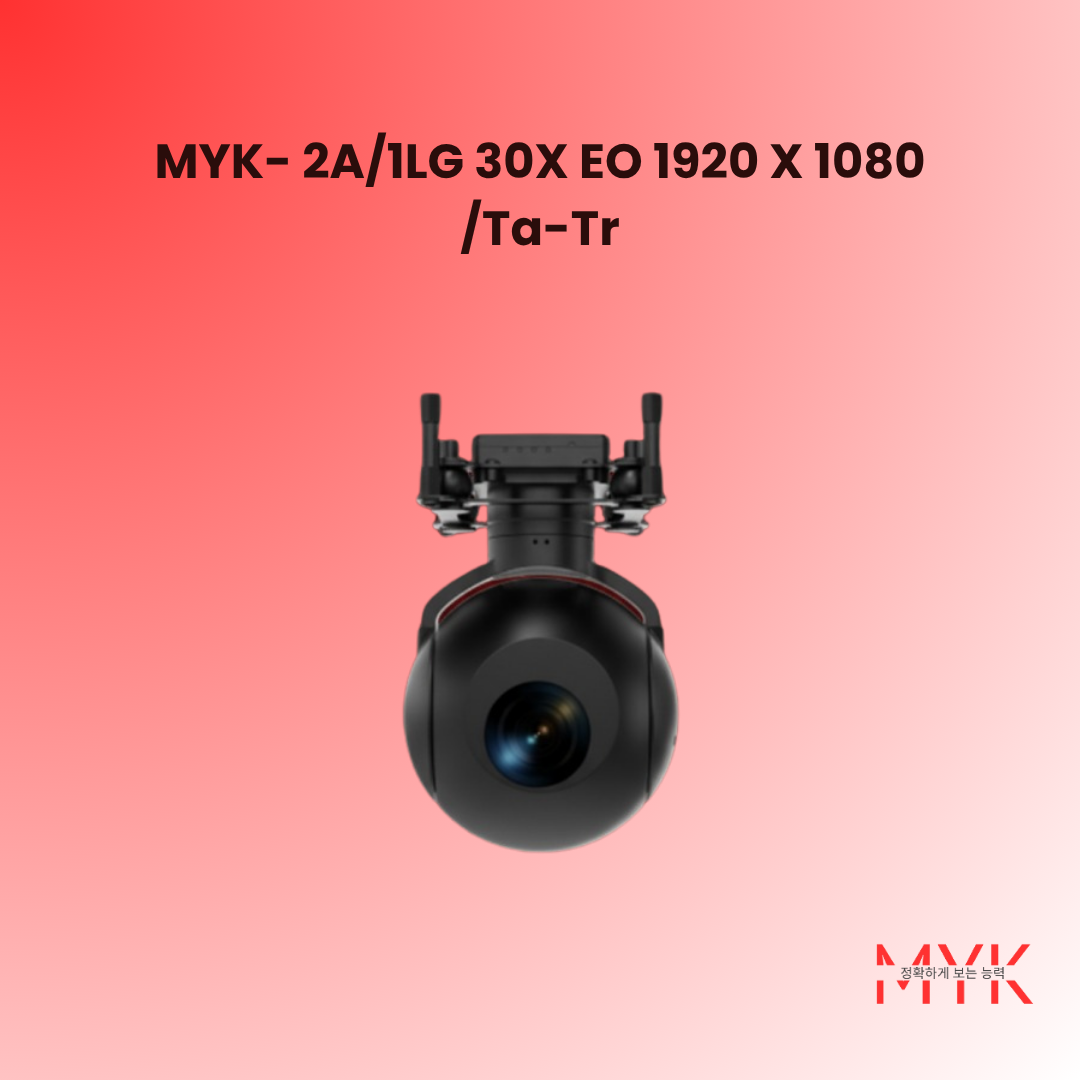

MYK-2A/1LG 30X EO 1920 X 1080 /Ta-Tr

Product Introduction

The MYK-2A/1LG 30X EO 1920 X 1080 /Ta-Tr Gimbal Camera consists of a full color night vision 30x continuous zoom visible light camera, a two-axis servo-stabilized platform and image processing components. It has features such as light weight, high stabilization accuracy and low latency. It can be integrated to the small and micro unmanned aerial vehicles to finish 24-hours security and surveillance tasks in the target area.

The gimbal camera can detect, identify, and track the ground targets for 24 hours both in daytime and nighttime. It also supports for visible light videos streaming in real time.

The gimbal camera has been adapted to a number of mainstream domestic flight control platforms, docked seamless with the flight control; and it can be accessed to the unit's ViewControlStudio display and control software platform, which can assist the overall unit complete the development of the unmanned aircraft system.

The application includes security and surveillance, border patrol, search and rescue, and forest fire prevention.

Product Functions

• Identify and track typical targets.
• Self-check and fault report.
• 30x optical zoom, full color night vision
• Output visible light images.
• Optical zoom, autofocus, manual focus, fog penetration and low illumination.
• Freely rotate in azimuth and pitch angle.
• Various operating modes such as heading lock/manual search/following/attitude stabilization/tracking.
• Isolate the disturbances of the carrier, stabilize the line of sight.
• Lock/unlock the target, output the image with a tracking frame after the target is locked.
• Auto track the target and resist interference.
• Memory tracking with rapid target reacquisition
• Adjust size of the wave gate.
• Switch tracking targets.
• 100 Gigabit network video interface (RTSP protocol)
• Photo taking and videos recording.

Main Technical Parameters

Model

MYK-2A/1LG 30X EO 1920 X 1080 /Ta-Tr

Visible Light Camera

Parameter	Specification
Resolution	1920×1080
Optical Zoom	30 times
Hybrid Zoom	60 times
Focal Length	5.1mm～153mm
Field of View Angle	55.2°×31.1°～2.7°×1.5°(±5%)
Zoom	Auto focus, manual focus
Minimum Illumination	0.01Lux (color)

Servo Platform

Parameter	Specification
Pan Angle	360°×n continuous rotation
Tilt Angle	-120°~+90°
Frame Angle Accuracy	≤0.3°
Stabilization Accuracy	≤0.1mrad
Max Tracking Angular Velocity	20°/s
Max Rotation Speed	Azimuth≥50°/s Pitch≥50°/s
Max Rotational Acceleration	Azimuth≥20°/s Pitch≥20°/s

System Parameters

Parameter	Specification
Voltage	12V-32VDC
Consumption	Stable≤15W peak current≤5A @ 24VDC
Weight	≤500g
Dimensions	108mm×108mm×156.5mm

Imaging Processing Module

Parameter	Specification
Automatically Identification	≥32 targets
Target Tracking	dimension≥16×16
Tracking Frame Rates	50HZ
Image Output	RTSP/UDP/RTMP optional 200kbps～6Mbps settable

Interface

Parameter	Specification
Control Interface	RS232/TTL/RS422/100Mbit(optional)
Video Interface	100 megabit Ethernet
Storage Interface	≤128G Memory Card (Mini SD)
Picture Format	jpg
Video Format	avi
Quick Release Type	Without quick release

Environmental Adaptability

Parameter	Specification
Working Temperature	-20℃~+55℃ (-40℃ optional)
Storage Temperature	-40℃~+60℃
Vibration Condition	6g acceleration 5min each direction
Impact Condition	20g peak 11ms duration
Protection Level	Can fly in light rain
